Description
Description

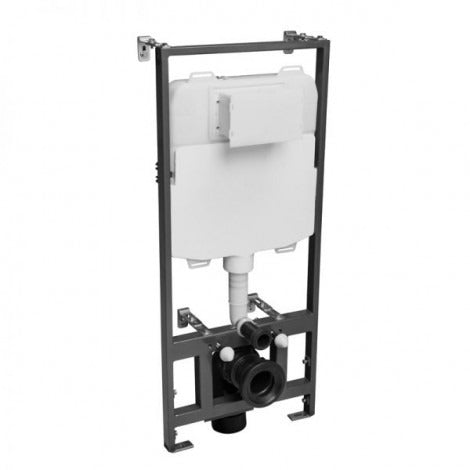

This wall hung frame is suitable for in-wall applications. The frame comes complete with an integral 6/3 litre dual flush cistern and an anti-condensation jacket for insulation.
The 1.17M wall hung frame has an adjustable depth 140 - 200mm and has adjustable height legs (200mm adjustment), the frame features front access and push plate position. The wall hung frame has a 0.2-10.0bar working pressure range. The mimimum depth for 'straight out' waste pipe routings is 110mm.
1.17M Wall Hung Frame Features Include:
- For use with in-wall applications
- Adjustable depth 140 - 200mm
- Adjustable height legs (200mm adjustment)
- 6/3L pneumatic flush valve and top entry 1/2" (male) inlet valve
- Front access, push plate position
- Polystyrene anti condensation jacket
- 0.2-10.0bar working pressure range
- Mimimum depth for 'straight out' waste pipe routings is 110mm
- Brakcets, fixings and 1st fix protective covers included
